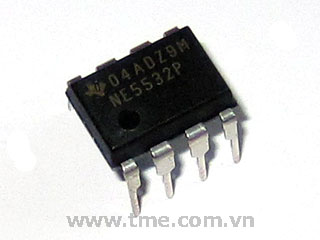

NE5532P Dual Low-Noise High-Speed Audio Operational Amplifier
Features
- Equivalent Input Noise Voltage:
5 nV/
Hz Typ at 1 kHz
- Unity-Gain Bandwidth: 10 MHz Typ
- Common-Mode Rejection Ratio: 100 dB Typ
- High DC Voltage Gain: 100 V/mV Typ
- Peak-to-Peak Output Voltage Swing 26 V Typ
With VCC± = ±15 V and RL = 600
- High Slew Rate: 9 V/µs Typ
DESCRIPTION/ORDERING INFORMATION
The NE5532, NE5532A, SA5532, and SA5532A are high-performance operational amplifiers combining excellent dc and ac characteristics. They feature very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. These operational amplifiers are compensated internally for unity-gain operation. These devices have specified maximum limits for equivalent input noise voltage.
Parametrics
| Iq per channel (Max) (mA) |
4 |
| VIO (25 deg C) (Max) (mV) |
4 |
| CMRR (Min) (dB) |
70 |
| Vn at 1kHz (Typ) (nV/rtHz) |
5 |
| IIB (Max) (pA) |
800000 |
| Slew Rate (Typ) (V/us) |
9 |
| GBW (Typ) (MHz) |
10 |
| Spec'd at Vs (V) |
+/-15 |
| VIO (Full Range) (Max) (mV) |
5 |
| Vs (Min) (V) |
10 |
| Vs (Max) (V) |
30 |
| Pin/Package |
8PDIP |
| Vio (Max) (mV) |
5 |
| Supply Voltage 5 (V) |
No |
| Open Loop Gain (Min) (dB) |
88 |
| IQ Per Amp (+/-) (Max) (mA) |
4 |
| Offset Voltage (+/-) (Max) (mV) |
5 |
| Number of Channels |
2 |
| Operating Temperature Range (C) |
0 to 70 |
| Total Supply Voltage (V) (Min) (+5V=5, +/-5V=10) |
10 |
| Total Supply Voltage (V) (Max) (+5V=5, +/-5V=10) |
30 |
